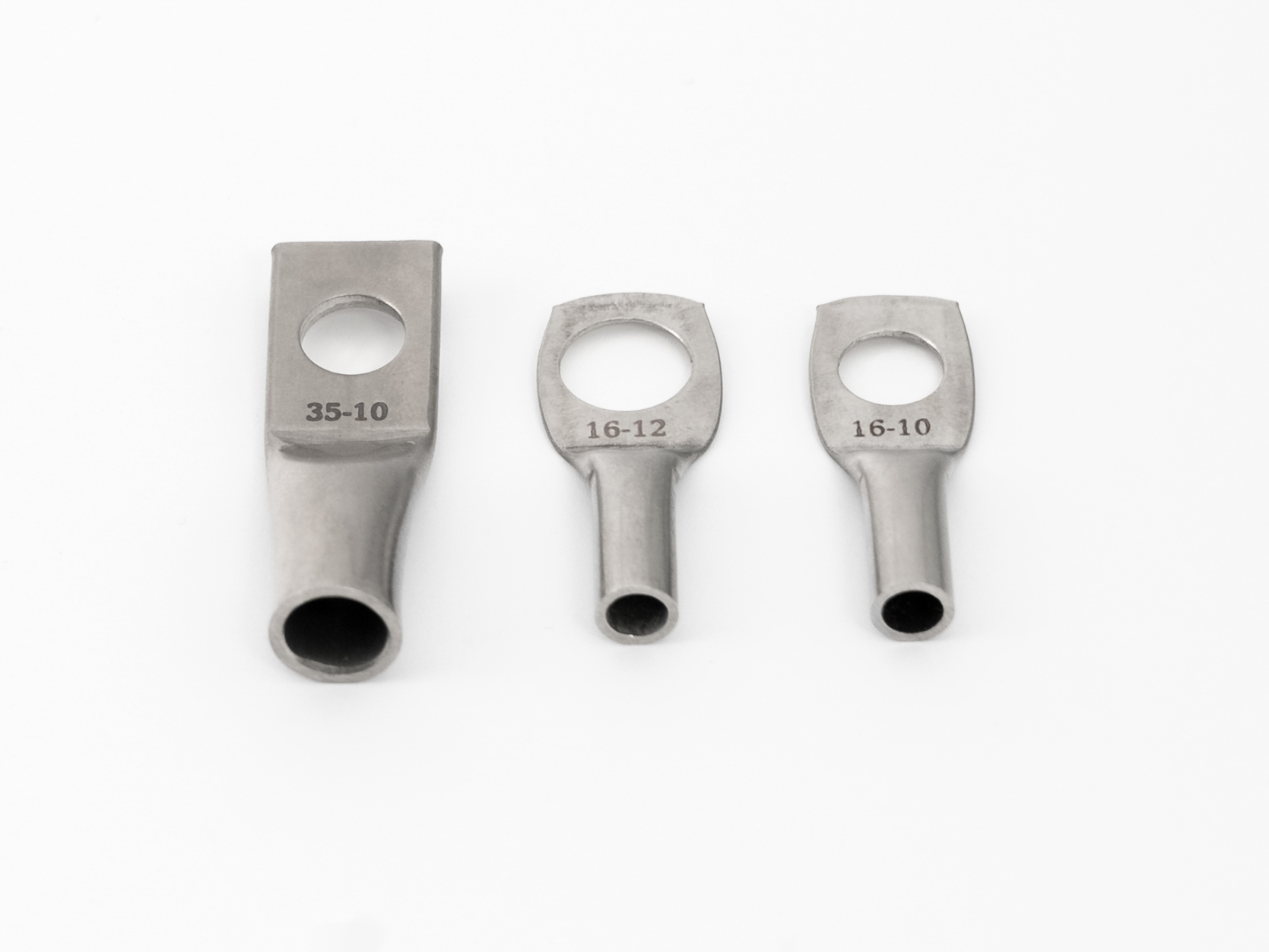

Copper tube lugs with oversized holes.
These large-holed copper tube terminals are ideal for earthing steelwork. The large hole can be used with existing bolts on a variety of electrical installations.
Standard Range

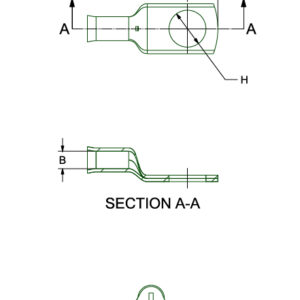

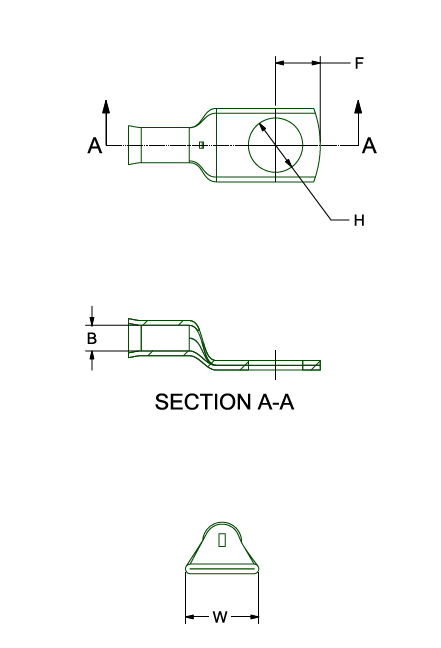

In the standard range, the cable sizes for these terminals ranges from 6mm2 all the way up to 95mm2. The clearance holes vary in size depending on the cable size, but are typically either M12, M14, M16 or M20. For further information on the exact combinations, refer to the table below.
Bespoke Range
As always, feel free to contact the team at Total Connections to explore non-standard sized products. Copper tube terminals can be manufactured with larger or smaller clearance holes, and for a variety of cable sizes.
