ES-300 Hydraulic Crimping & Cutting Tool

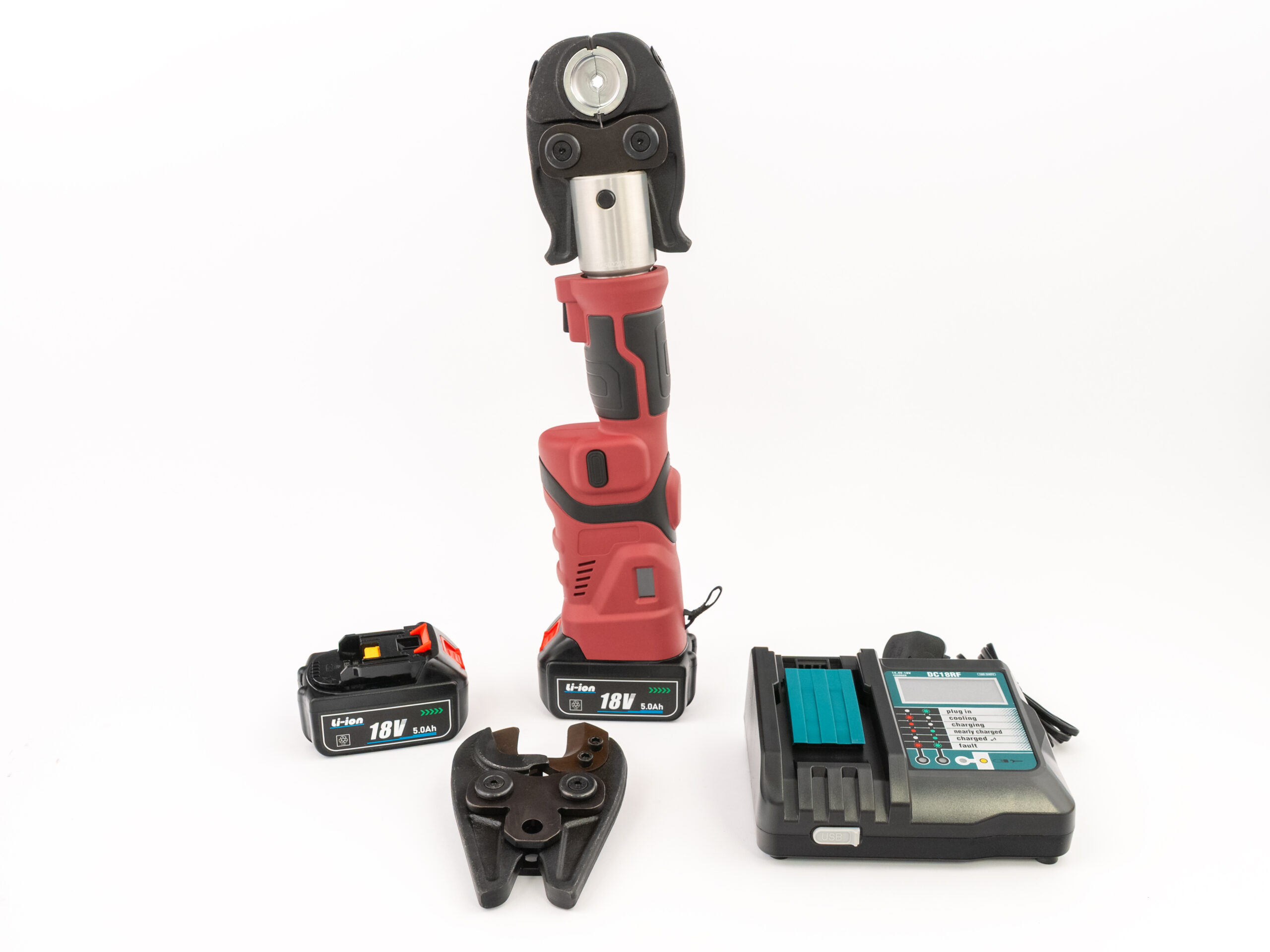

ES-300 In-Line Battery Operated Hydraulic Crimping & Cutting Tool

ES-300 Hydraulic Crimping & Cutting Tool – a versatile and powerful solution for crimping and cutting. Designed for efficiency and durability, it handles a wide range of terminals and cables. With a force of 60 kN and a crimping range of 4-300mm², the ES-300 Hydraulic Crimping & Cutting Tool ensures quick and reliable performance. The tool features a strong drive, manual reset button, and an LED display for monitoring. Powered by an 18V, 4.0Ah battery, the ES-300 can perform up to 130 cycles per charge. It includes a precision thickened pliers head, easy die change mechanism, and a large capacity 5000mAh battery. Ideal for electrical work, construction, and emergency maintenance, it comes in a durable, collision-proof plastic box.

Applications: Suitable for copper lugs and splices, bare or insulated sleeves in copper or aluminium, C-shaped connector and cutting of electrical cables.

ES-300 Hydraulic Crimping & Cutting Tool

Specifications:

Multi-Function: Crimping and cutting capabilities.
LED Indicator: Includes lighting function.
Glue Coated Handle: Anti-skid for better grip.
LED Display Screen: Shows power, frequency, pressure, and temperature.
Battery Lock: Prevents battery from loosening.
Manual Reset Button: For pressure relief in case of operation error.
Air Outlet: For heat dissipation.
Cutting Force: 60KN
Stroke: 17mm
Cutting Times: 130 times per saturation voltage
Cutting Range: Up to 30mm (armoured and Cu/Al cable)
Crimping Range: 4-300mm²
Voltage/Capacity: 18V/5.0Ah
Net Weight: 3.0kg
Charging Time: 2 hours
Large Capacity Battery: 5000mAh lithium battery for extended use.
Easy Die Change: Simple and quick replacement.

Features:

Ergonomic design with On / Off button
Robust plastic housing with rubber grip handle
Quick opening and closing head, 180° rotatable with interchangeable dies and wide crimping
Maximum operating speed with high performance motor
Balanced centre of gravity for easy handling and effortless operations
Quick motor stop function for high user safety
18V Li-Ion battery, high performance with short charging time
Manual retraction when crimp is complete
Large and ergonomic triggers
Simple display panel with light diode for battery charge level, crimping failure and maintenance control
Pressure safety system to prevent over pressure failures
Energy saving function by stopping tool after 10 minutes unused
USB connection for data analysis & preventive maintenance with dedicated software
A strong driver with efficient and powerful operation.
Safety and Durability.
High performance with one-button start.

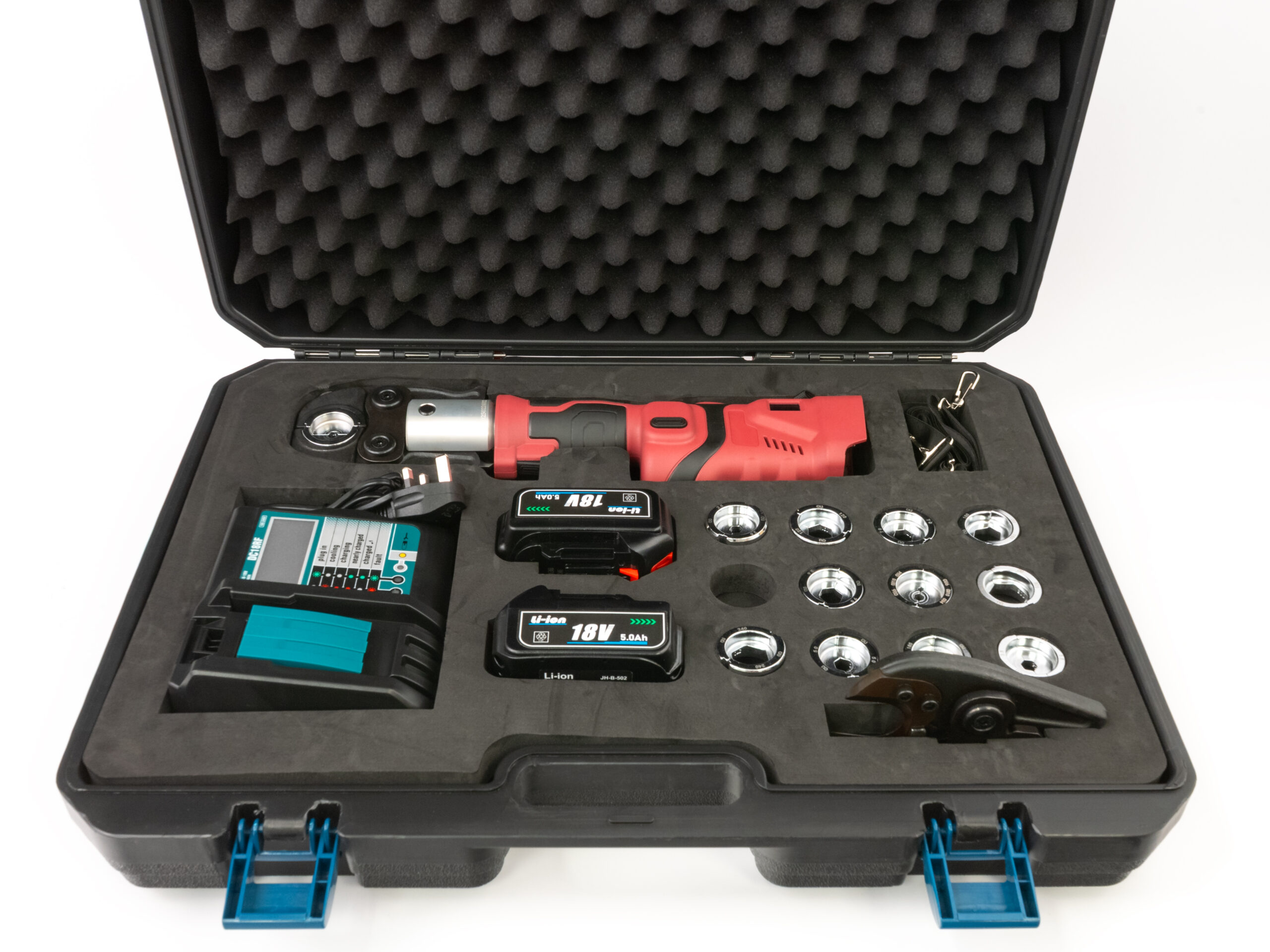

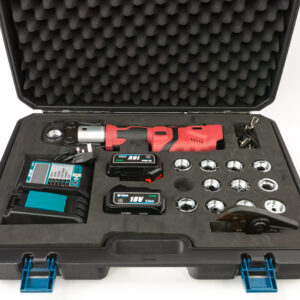

Accessories:

Crimping Dies: Sizes 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm²
Battery: 2 pieces
Charger: 1 piece
Carry Case: Thickened plastic box Durable, collision-proof, lightweight, and resistant to low temperatures.

Why Quality Crimping Matters:

Creating a reliable crimp terminal depends on five key factors: proper wire preparation, selecting the correct terminal, and using the right tooling. These must be supported by thorough documentation and skilled, well-trained personnel. When all elements work together, they ensure strong, consistent electrical connections that meet performance and safety standards. If you have any queries please contact us for more information
