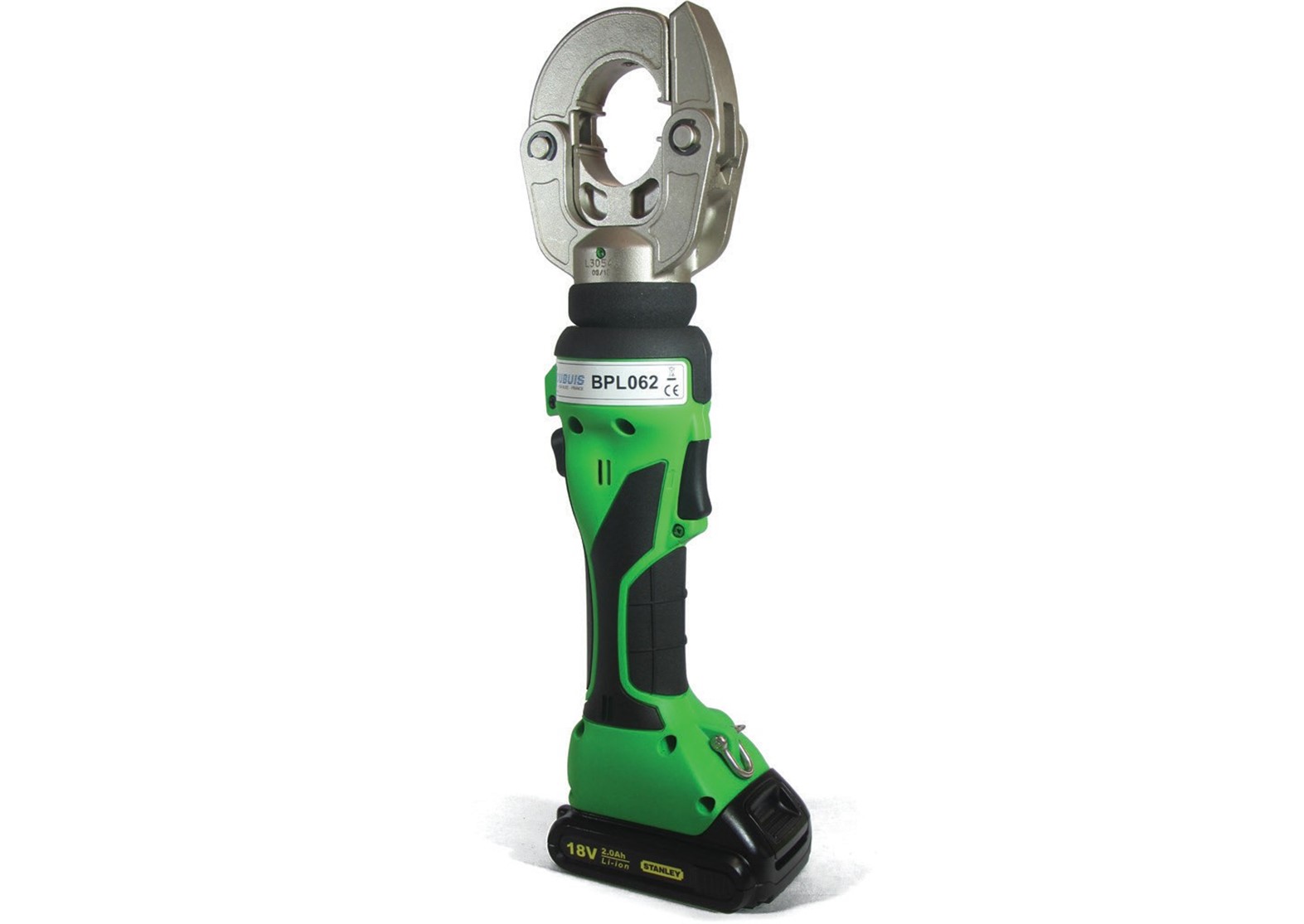

Dubuis BPL062 Battery Operated Crimping Tool
Specifications:
- Force: 62 kN
- Crimping Time: 3 to 5 seconds (depending on section)
- Battery Capacity: 220 crimps for 185 mm² copper lug
- Dimensions: 128 × 75 × 395 mm
- Weight: 3.250 kg (with battery)
- Hexagonal Crimping: 6 to 300 mm²
- Rotative Head: 180° rotation for ease of use
- Quick Opening & Closing Head: Easy die set replacement
- Battery: 18V, 2Ah
Features:
- Ergonomic design with On/ Off button
- Robust plastic housing with rubber grip handle
- Quick opening and closing head, 180° rotatable with interchangeable dies and wide crimping
- Maximum operating speed with high performance motor
- Balanced centre of gravity for easy handling and effortless operations
- Quick motor stop function for high user safety
- 18V Li-Ion battery, high performance with short charging time
- Manual retraction when crimp is complete
- Large and ergonomic triggers
- Simple display panel with light diode for battery charge level, crimping failure and maintenance control
- Pressure safety system to prevent over pressure failures
- Energy saving function by stopping tool after 10 minutes unused
- USB connection for data analysis & preventive maintenance with dedicated software
- Handling ring for safety cable or transportation
Why Quality Crimping Matters:
Creating a reliable crimp terminal depends on five key factors: proper wire preparation, selecting the correct terminal, and using the right tooling. These must be supported by thorough documentation and skilled, well-trained personnel. When all elements work together, they ensure strong, consistent electrical connections that meet performance and safety standards. If you have any queries please contact us for more information
